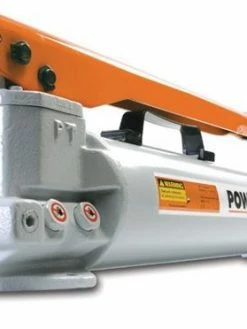

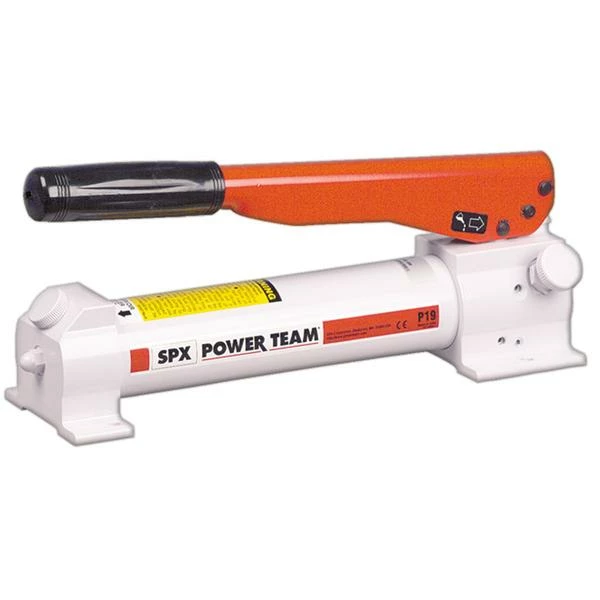

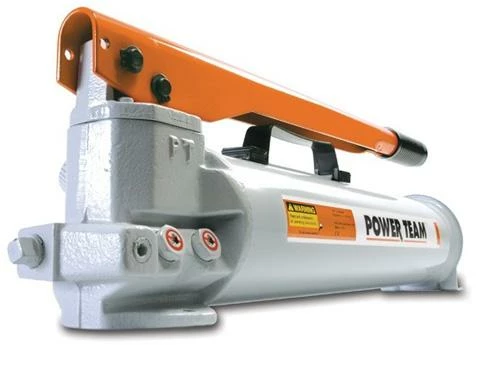

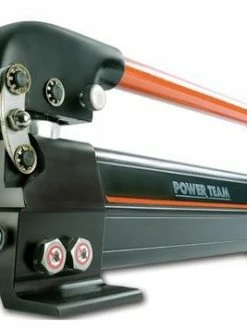

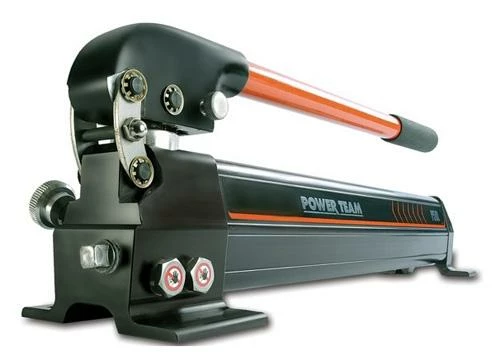

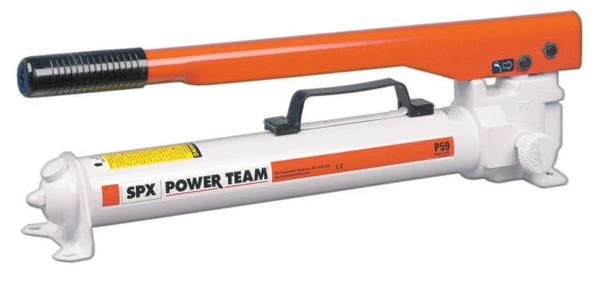

SPX Power Team Single Acting Manual Pump, 2-Speed Shop Equipment

SPX Power Team Single Acting Manual Pump, 2-Speed Shop Equipment

Original price was: $568.00.Current price is: $94.99.

SKU: shop-equipment-6671355772989 Categories: Equipment, Shop Equipment Tags: Hydraulic Pumps, Shop-equipment, Single Acting – Two Speed Hand Pumps, Split1, Spx-power-team

Nature-friendly materials, for a better planet.
The Quality Choice for Smart Shoppers
There are quality problems, free return and exchange
Free Shipping over $25

24.4 to 55 cu. in. Two-Speed, Single-Acting

PUMP AUTOMATICALLY SHIFTS INTO THE HIGH PRESSURE LIFT STAGE UPON CONTACT WITH THE LOAD.

All metal construction won’t burn through in welding environments.
Two-speed reduces handle strokes so you work faster and easier.
Formed metal handle provides less flex, and reduces operator fatigue.
Convenient fill port allows pumps to be filled in a horizontal or vertical position.
Relief valve inboard of check valve prevents loads from drifting down.
Large valve knob gives added control for slowly metering loads down.

SPECIFICATIONS
For Use With	Speed	Vol per Stroke (cu. in)		Max Pressure (psi)		Handle Effort (lbs.)	Reservoir		Oil Port (in.)	Weight (lbs.)
		LP	HP	LP	HP		Oil Cap. (cu. in.)	Usable Oil Cap. (cu. in.)
Single Acting	2	0.305	0.076	325	10,000	99	24.4	20	3/8 NPTF	6.6

SPECIFICATIONS
For Use With	Speed	Vol per Stroke (cu. in)		Max Pressure (psi)		Handle Effort (lbs.)	Reservoir		Oil Port (in.)	Weight (lbs.)
		LP	HP	LP	HP		Oil Cap. (cu. in.)	Usable Oil Cap. (cu. in.)
Single Acting	2	0.025	0.050	850	10,000	78	29.0	27	3/8 NPTF	5.1

SPECIFICATIONS
For Use With	Speed	Vol per Stroke (cu. in)		Max Pressure (psi)		Handle Effort (lbs.)	Reservoir		Oil Port (in.)	Weight (lbs.)
		LP	HP	LP	HP		Oil Cap. (cu. in.)	Usable Oil Cap. (cu. in.)
Single Acting	2	0.65	0.16	1,400	10,000	140	152.0	137.0	3/8 NPTF	28.0

SPECIFICATIONS
For Use With	Speed	Vol per Stroke (cu. in)		Max Pressure (psi)		Handle Effort (lbs.)	Reservoir		Oil Port (in.)	Weight (lbs.)
		LP	HP	LP	HP		Oil Cap. (cu. in.)	Usable Oil Cap. (cu. in.)
Single Acting	2	0.662	0.16	325	10,000	145	55.0	45.0	3/8 NPTF	17.2

SPECIFICATIONS
For Use With	Speed	Vol per Stroke (cu. in)		Max Pressure (psi)		Handle Effort (lbs.)	Reservoir		Oil Port (in.)	Weight (lbs.)
		LP	HP	LP	HP		Oil Cap. (cu. in.)	Usable Oil Cap. (cu. in.)
Single Acting	2	0.72	0.15	850	10,000	104	69.0	66.0	3/8 NPTF	8.9
