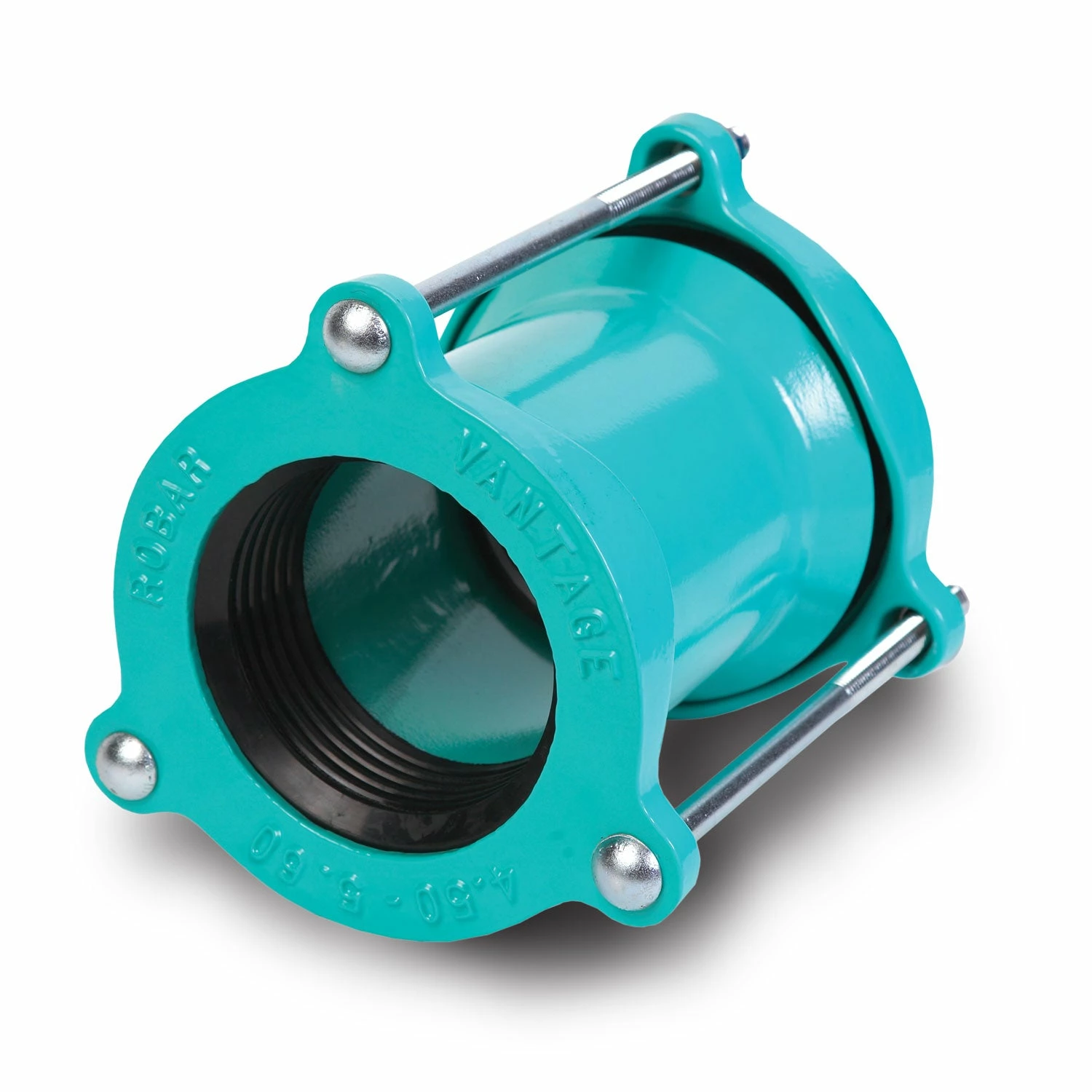

Waterworks Products Robar Vantage Series Multi-Fit Couplings – Epoxy Coated With SS Bolts And Nuts
Original price was: $501.69.$88.99Current price is: $88.99.
- Nature-friendly materials, for a better planet.
- The Quality Choice for Smart Shoppers
- There are quality problems, free return and exchange
- Free Shipping over $25
Robar’s Vantage couplings can be used to couple similar or dissimilar ODs in the same nominal size group. The Vantage coupling comes with a stab-fit design, allowing for use on Ductile, Steel, PVC, HDPE, and AC Pipe.
Material Specifications
-
Center Sleeve: Carbon Steel
-
End Rings: Cast Ductile Iron
-
Gaskets: Nitrile (NBR) Rubber
-
Fasteners: 5/8″ T-304 Stainless Steel – Nuts coated with anti-galling compound – Torque is 70 ft. lbs
-
Coating: Corrosion Protective Epoxy Coating
-
PSI Rating: 4″ thru 10″ – 175 PSI; 12″ – 150 PSI
| Nominal Size | Working Range | Barrel Length | No. of Bolts |
| 4″ | 4.50 – 5.60 | 8 | 3 |
| 6″ | 6.63 – 7.60 | 8 | 3 |
| 8″ | 8.63 – 9.80 | 8 | 3 |
| 10″ | 10.75 – 12.26 | 12 | 4 |
| 12″ | 12.75 – 14.40 | 12 | 5 |
| Click on Size to Display Part Number and Price | 4" Nom. Size Coupling, 6" Nom. Size Coupling, 8" Nom. Size Coupling, 10" Nom. Size Coupling, 12" Nom. Size Coupling |
|---|
