Well Pumps And Pressure Tanks Flotec 1/2 HP Cast Iron Shallow Well Jet Pump/Tank Water System | 5.6 GPM

The Flotec 1/2 HP FP410515H Cast Iron Jet Pump/Pressure Tank System is a quiet and compact all-in-one home water pressure supply system for homes that are not connected to a municipal water supply system.

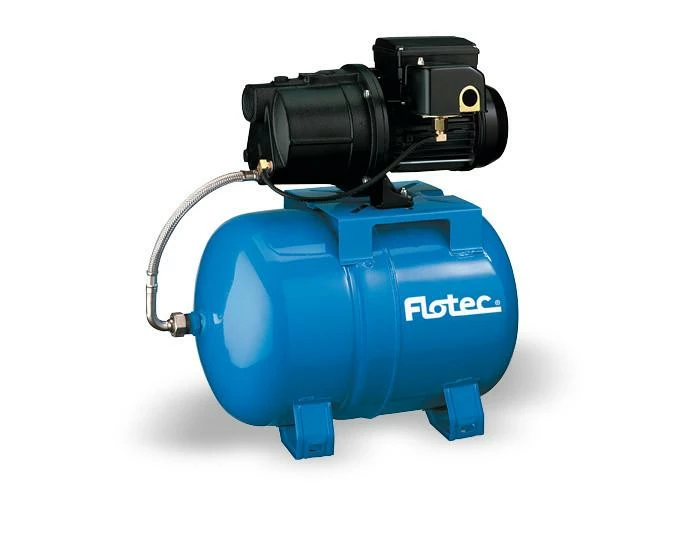

The Flotec cast iron jet pump and pressure switch are pre-mounted on the 5 gallon horizontal pressure tank base, providing a compact and ready to install home water pressurization system.

Flotec Cast Iron Pump/Pressure Tank System features:

BODY CONSTRUCTION:  Cast Iron

HORSEPOWER:  1/2

MAXIMUM CAPACITY:  5.6 GPM

MAX LIFT:  25′

MAXIMUM PRESSURE:  63 psi

PRESSURE SWITCH SETTING:  30/50

SUCTION PIPE SIZE:  1″ NPT

DISCHARGE PIPE SIZE:  1″ NPT

AMP DRAW (full load):  7.2 amps

VOLTAGE:  115v, 60 Hz

RECOMMENDED BREAKER:  15 amps

MAXIMUM WATER TEMPERATURE:  140 F (60 C)

TANK DRAWDOWN:  .6 gal

WARRANTY: 1 year

DEPTH TO WATER	PRESSURE	FLOW
5′	40 PSI	5.1 GPM
10′	40 PSI	4.5 GPM
15′	40 PSI	4.1 GPM
20′	40 PSI	3.5 GPM
